74VHC02MTC Datasheet, Gate, ON Semiconductor

74VHC02MTC Features

  • Gate
  • High Speed: tPD = 3.6ns (Typ.) at VCC = 5V
  • Low power dissipation: ICC = 2µA (Max.) at TA = 25°C
  • High noise immunity: VNIH = VNIL = 28% VCC (Min.)

PDF File Details

Part number:

74VHC02MTC

Manufacturer:

ON Semiconductor ↗

File Size:

545.27kb

Download:

📄 Datasheet

Description:

Quad 2-input nor gate. The VHC02 is an advanced high-speed CMOS 2-Input NOR Gate fabricated with silicon gate CMOS technology. It achieves the high-speed op

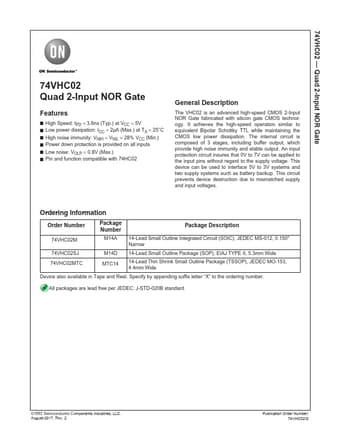

Datasheet Preview: 74VHC02MTC 📥 Download PDF (545.27kb)
Page 2 of 74VHC02MTC Page 3 of 74VHC02MTC

TAGS

74VHC02MTC
Quad
2-Input
NOR
Gate
ON Semiconductor
