89C536 - 80C51 8-bit microcontroller family 16K/64K/512 FLASH

Datasheet Summary

Description

The 89C536/89C538 are Single-Chip 8-Bit Microcontrollers manufactured in advanced CMOS process and are derivatives of the 80C51 microcontroller family.

All the devices have the same instruction set as the 80C51.

Features

  • 80C51 Central Processing Unit.
  • 16k × 8 (89C536) or 64k × 8 (89C538), FLASH EPROM Program Memory.
  • 512 × 8 RAM, externally expandable to 64k × 8 Data Memory.
  • Three 16-bit counter/timers.
  • Up to 3 external interrupt request inputs.
  • 6 interrupt sources with 2 priority levels.
  • Four 8-bit I/O ports.
  • Full-duplex UART.
  • Power control modes.
  • Idle mode.
  • Power down mode, with wakeup from power down using ext.

📥 Download Datasheet

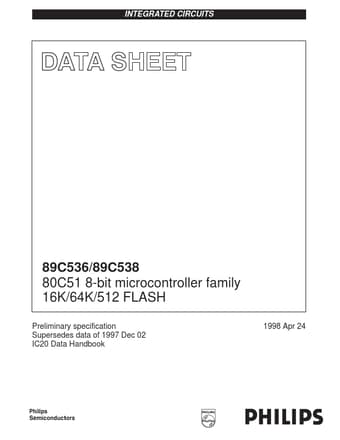

Datasheet preview – 89C536

Datasheet Details

Part number 89C536
Manufacturer NXP
File Size 269.77 KB
Description 80C51 8-bit microcontroller family 16K/64K/512 FLASH
Datasheet download datasheet 89C536 Datasheet
Additional preview pages of the 89C536 datasheet.

📁 Similar Datasheet

  • 89C51 - 8 Bit Microcontroller with 4 Kbytes Flash (atmel)
  • 89C5122 - AT89C5122 (ATMEL Corporation)
  • 89C5131 - AT89C5131 (ATMEL Corporation)
  • 89C516RD - ST89C516RD (ETC)
  • 89C51AC2 - Enhanced 8-bit Microcontroller (ATMEL Corporation)
  • 89C51CC01 - T89C51CC01 (ATMEL Corporation)
  • 89C51ED2 - AT89C51ED2 (ATMEL Corporation)
  • 89C51RC - AT89C51RC (ATMEL Corporation)
  • 89C51RD2 - 0 to 40MHz Flash Programmable 8-bit Microcontroller (ATMEL Corporation)
  • 89C51RE2 - AT89C51RE2 (ATMEL)
Other Datasheets by NXP
  • 89C536 - CMOS single-chip 8-bit microcontrollers with FLASH program memory
  • 89C535 - CMOS single-chip 8-bit microcontrollers with FLASH program memory
  • 89C538 - CMOS single-chip 8-bit microcontrollers with FLASH program memory
  • 89C538 - 80C51 8-bit microcontroller family 16K/64K/512 FLASH
  • 89C51 - 80C51 8-bit microcontroller family 4K/8K/16K/32K Flash
  • 89C51 - 80C51 8-bit microcontroller family 4K/8K/16K/32K Flash
  • 89C51RB2 - 80C51 8-bit Flash microcontroller family 16KB/32KB/64KB ISP/IAP Flash with 512B/512B/1KB RAM
  • 89C51RC2 - 80C51 8-bit Flash microcontroller family 16KB/32KB/64KB ISP/IAP Flash with 512B/512B/1KB RAM

Full PDF Text Transcription

Click to expand full text
INTEGRATED CIRCUITS 89C536/89C538 80C51 8-bit microcontroller family 16K/64K/512 FLASH Preliminary specification Supersedes data of 1997 Dec 02 IC20 Data Handbook 1998 Apr 24 Philips Semiconductors Philips Semiconductors Preliminary specification 80C51 8-bit microcontroller family 16K/64K/512 FLASH 89C536/89C538 DESCRIPTION The 89C536/89C538 are Single-Chip 8-Bit Microcontrollers manufactured in advanced CMOS process and are derivatives of the 80C51 microcontroller family. All the devices have the same instruction set as the 80C51. The devices also have four 8-bit I/O ports, three 16-bit timer/event counters, a multi-source, two-priority-level, nested interrupt structure, UART and on-chip oscillator and timing circuits.
