A3G26D055N

Airfast RF Power GaN Amplifier

A3G26D055N Features

* High terminal impedances for optimal broadband performance

* Improved linearized error vector magnitude with next generation signal

* Able to withstand extremely high output VSWR and broadband operating conditions

* Designed for low complexity analog or digital line

A3G26D055N General Description

This 8 W symmetrical Doherty RF power GaN amplifier is designed for cellular base station applications requiring very wide instantaneous bandwidth capability covering the frequency range of 100 to 2690 MHz. This part is characterized and performance is guaranteed for applications operating in the 1.

A3G26D055N Datasheet (416.89 KB)

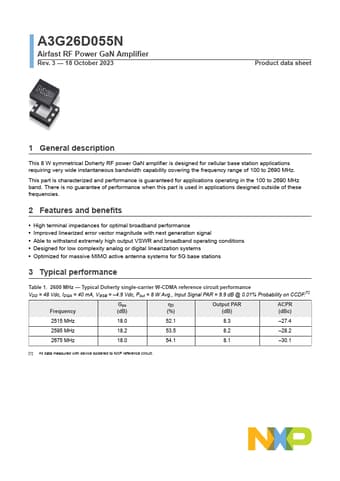

Preview of A3G26D055N PDF

Datasheet Details

Part number:

A3G26D055N

Manufacturer:

NXP ↗

File Size:

416.89 KB

Description:

Airfast rf power gan amplifier.
