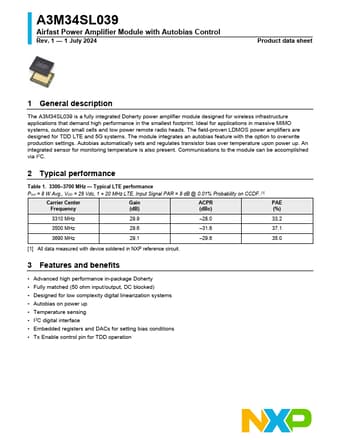

A3M34SL039S Datasheet Preview — This datasheet PDF includes multiple part numbers: A3M34SL039S, A3M34SL039I. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	A3M34SL039S, A3M34SL039I
Manufacturer	NXP ↗
File Size	3.20 MB
Description	Airfast Power Amplifier
Datasheet	A3M34SL039I-NXP.pdf
Note	This datasheet PDF includes multiple part numbers: A3M34SL039S, A3M34SL039I. Please refer to the document for exact specifications by model.

A3M34SL039S Product details

Description

The A3M34SL039 is a fully integrated Doherty power amplifier module designed for wireless infrastructure applications that demand high performance in the smallest footprint.

Features

Advanced high performance in-package Doherty.
Fully matched (50 ohm input/output, DC blocked).
Designed for low complexity digital linearization systems.
Autobias on power up.
Temperature sensing.
I2C digital interface.
Embedded registers and DACs for setting bias conditions.
Tx Enable control pin for TDD operation NXP Semiconductors 4 Pinning information 4.1 Pinning A3M34SL039 Airfast Power Amplifier Module with Autobias.
