A3M36SL037 - Airfast Power Amplifier

NXP

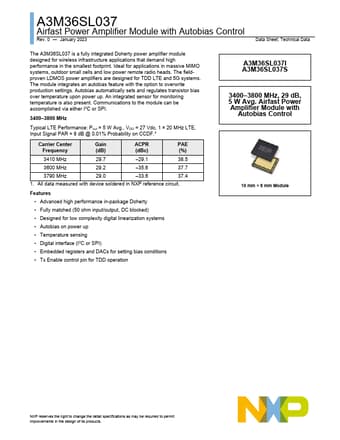

A3M36SL037 Datasheet Preview — Preview of A3M36SL037 PDF

Datasheet Details

Part number	A3M36SL037
Manufacturer	NXP ↗
File Size	3.10 MB
Description	Airfast Power Amplifier
Datasheet	A3M36SL037-NXP.pdf

A3M36SL037 Product details

Description

Electrical characteristics4 Ratings 4 Maximum ratings 4 Lifetime 5 ESD protection characteristics 5 Moisture sensitivity level5 Operating characteristics5 Nominal DAC settings 5 Functional tests 6 Wideband ruggedness 6 Typical performance6 Register map and OTP memory7 One-time programmable memory 7 Register map 7 Power supply sequence 10 Autobias functionality 11 General overview 11 Operational overview 11 Tx enable control12 Sense_DAC 12 VGS_DAC 13 Engineering Mode (EM) 13 Ordering

Features

Advanced high performance in-package Doherty.
Fully matched (50 ohm input/output, DC blocked).
Designed for low complexity digital linearization systems.
Autobias on power up.
Temperature sensing.
Digital interface (I2C or SPI).
Embedded registers and DACs for setting bias conditions.
Tx Enable control pin for TDD operation A3M36SL037I A3M36SL037S 3400.
3800 MHz, 29 dB, 5 W Avg. Airfast Power Amplifier Module with A.
