A3M36SL037S

Airfast Power Amplifier

A3M36SL037S Datasheet (3.10 MB)

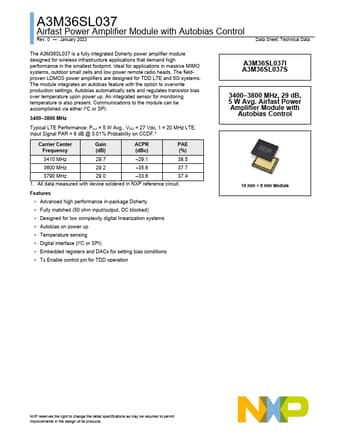

Preview of A3M36SL037S PDF

Datasheet Details

Part number:

A3M36SL037S

Manufacturer:

NXP ↗

File Size:

3.10 MB

Description:

Airfast power amplifier.
A3M36SL037 Airfast Power Amplifier Module with Autobias Control Rev. 0

* January 2023 Data Sheet: Technical Data The A3M36SL037 is a fully i.

A3M36SL037S Features

* Advanced high performance in-package Doherty

* Fully matched (50 ohm input/output, DC blocked)

* Designed for low complexity digital linearization systems

* Autobias on power up

* Temperature sensing

* Digital interface (I2C or SPI)

* Embedde

A3M36SL037S General Description

Electrical characteristics4 Ratings 4 Maximum ratings 4 Lifetime 5 ESD protection characteristics 5 Moisture sensitivity level5 Operating characteristics5 Nominal DAC settings 5 Functional tests 6 Wideband ruggedness 6 Typical performance6 Register map and OTP memory7 One-time programmable me.
