ASL1507SHN

Single-phase and two-phase boost converter

ASL1507SHN Features

* AEC-Q100 grade 1 qualified

* Limp-home mode ensuring system safety

* Up to two flexible output voltages with 3 % accuracy programmable via SPI

* Single phase on each output or double phase on one output

* Fixed frequency operation via built-in oscillator fro

ASL1507SHN General Description

The ASL1507SHN; ASL2507SHN has a fixed frequency peak current mode control with parabolic/non‑linear slope compensation. It can operate with input voltages from 5.5 V to 40 V. It can be configured in boost topology via SPI for output voltages of up to 80 V, to power the LED buck driver IC. The ASL15.

ASL1507SHN Datasheet (545.49 KB)

Preview of ASL1507SHN PDF

Datasheet Details

Part number:

ASL1507SHN

Manufacturer:

NXP ↗

File Size:

545.49 KB

Description:

Single-phase and two-phase boost converter.

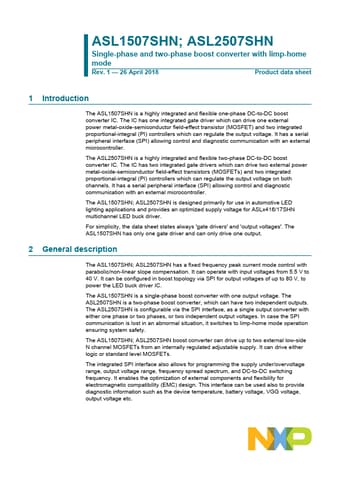

ASL1507SHN; ASL2507SHN Single-phase and two-phase boost converter with limp-home mode Rev. 1

* 26 April 2018 Product data sheet 1 Introduc.
