ASL2417SHN Datasheet - NXP

ASL2417SHN - Enhanced two channel LED buck driver

The ASL2417SHN has a hysteretic buck DC-to-DC topology.

With input voltages from 10 V to 80 V, it allows maximum flexibility on output voltages for each channel, enabling applications with up to 20 LEDs.

It also provides an output current of up to and above 1.5 A per channel.1 Furthermore, the outpu

ASL2417SHN Enhanced two channel LED buck driver with limp-home Rev.

4 16 September 2019 Product data sheet 1.

Introduction The ASL2417SHN is a two channel buck mode LED driver IC with a Limp-home mode.

It delivers constant average DC current to LEDs independent of the input voltage.

The ASL2417SHN supports up to two output channels.

It means that with one driver IC, 1 or 2 LED strings can be driven independently of each other.

It provides a cost effective design solution, specifica

ASL2417SHN Features

* The ASL2417SHN is an automotive grade product that is AEC-Q100 grade 1 qualified.

* Operating ambient temperature range of 40 C to +125 C

* Wide operating input voltage range from +10 V to +80 V

* Able to drive up to 20 LEDs, wide operating LED voltage range regulated from 2.5 V

ASL2417SHN-NXP.pdf

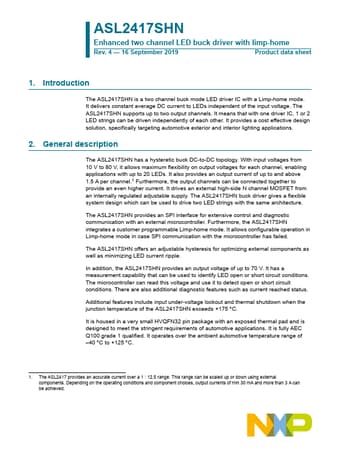

Preview of ASL2417SHN PDF
ASL2417SHN Datasheet Preview Page 2 ASL2417SHN Datasheet Preview Page 3

Datasheet Details

Part number:

ASL2417SHN

Manufacturer:

NXP ↗

File Size:

1.35 MB

Description:

Enhanced two channel led buck driver.
