ASL3417SHN

Enhanced three channel LED buck driver

ASL3417SHN Features

* The ASL3417SHN is an automotive grade product that is AEC-Q100 grade 1 qualified.

* Operating ambient temperature range of 40 C to +125 C

* Wide operating input voltage range from +10 V to +80 V

* Able to drive up to 20 LEDs, wide operating LED voltage range regulated from 2.5 V

ASL3417SHN General Description

The ASL3417SHN has a hysteretic buck DC-to-DC topology. With input voltages from 10 V to 80 V, it allows maximum flexibility on output voltages for each channel, enabling applications with up to 20 LEDs. It also provides an output current of up to and above 1.5 A per channel.1 Furthermore, two outpu.

ASL3417SHN Datasheet (1.36 MB)

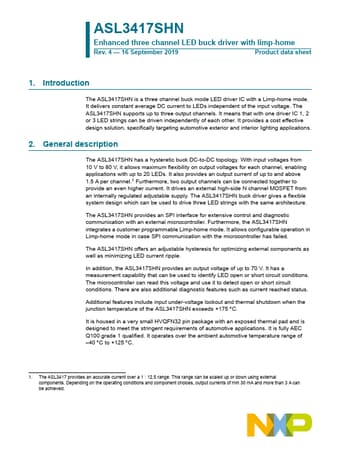

Preview of ASL3417SHN PDF

Datasheet Details

Part number:

ASL3417SHN

Manufacturer:

NXP ↗

File Size:

1.36 MB

Description:

Enhanced three channel led buck driver.
ASL3417SHN Enhanced three channel LED buck driver with limp-home Rev. 4

* 16 September 2019 Product data sheet 1. Introduction The ASL3417.
