AU5517D Datasheet, Amplifier, NXP

AU5517D Features

  • Amplifier
  • Constant impedance buffers
  • ∆VBE of buffer is constant with amplifier IBIAS change
  • Excellent matching between amplifiers
  • Linearizing diodes

PDF File Details

Part number:

AU5517D

Manufacturer:

NXP ↗

File Size:

193.72kb

Download:

📄 Datasheet

Description:

Dual operational transconductance amplifier. The AU5517 and NE5517 contain two current-controlled transconductance amplifiers, each with a differential input and push-pull output

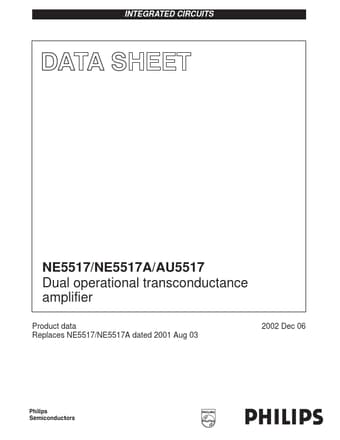

Datasheet Preview: AU5517D 📥 Download PDF (193.72kb)
Page 2 of AU5517D Page 3 of AU5517D

AU5517D Application

  • Applications Circuit performance is enhanced through the use of linearizing diodes at the inputs which enable a 10 dB signal-to-noise improvement r
