AU5780, SAE/J1850/VPW transceiver

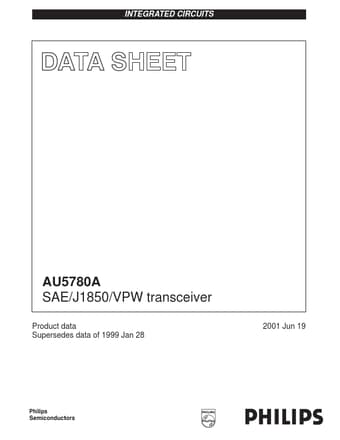

INTEGRATED CIRCUITS AU5780A SAE/J1850/VPW transceiver Product data Supersedes data of 1999 Jan 28 2001 Jun 19 Philips Semiconductors Philips Semico.
The AU5780A is a line transceiver being primarily intended for in-vehicle multiplex applications.

datasheet Preview Page 1 from Datasheet4u.com

AU5780_PhilipsSemiconductors.pdf

AU5780 Datasheet Preview — Preview of AU5780 PDF

Datasheet Details

Part number:

AU5780

Manufacturer:

NXP ↗

File Size:

82.08 KB

Description:

SAE/J1850/VPW transceiver

Features

* multiplexing
* Supports SAE/J1850 VPW standard for in-vehicle class B
* Bus speed 10.4 kbps nominal
* Drive capability 32 bus nodes
* Low RFI due to output waveshaping with adjustable slew rate
* Direct battery operation with protection against +50V load dump

Applications

* It provides interfacing between a link controller and the physical bus wire. The device supports the SAE/J1850 VPWM standard with a nominal bus speed of 10.4 kbps. PIN CONFIGURATION
* Bus terminals proof against automotive transients up to
* 200V/+200V BATT 1 8 GND
* Therm
