AU5783D

J1850/VPW transceiver with supply control function

AU5783D Features

* multiplexing

* Supports SAE/J1850 VPW standard for in-vehicle class B

* Bus speed 10.4 kbit/s nominal

* Drive capability 32 bus nodes

* Low RFI due to output waveshape function

* Direct battery operation with protection against +40V load dump and 8 kV ESD DE

AU5783D General Description

The AU5783 is a line transceiver being primarily intended for in-vehicle multiplex applications. It provides interfacing between a J1850 link controller and the physical bus wire. The device supports the SAE/J1850 VPWM standard with a nominal bus speed of 10.4 kbit/s. For data upload and download pu.

AU5783D Datasheet (115.89 KB)

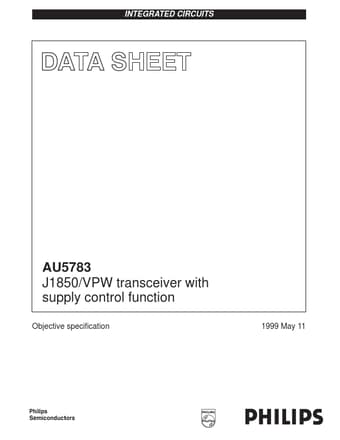

Preview of AU5783D PDF

Datasheet Details

Part number:

AU5783D

Manufacturer:

NXP ↗

File Size:

115.89 KB

Description:

J1850/vpw transceiver with supply control function.
INTEGRATED CIRCUITS AU5783 J1850/VPW transceiver with supply control function Objective specification 1999 May 11 Philips Semiconductors Philips Se.
