AU5780A

SAE/J1850/VPW transceiver

NXP

AU5780A Features

* multiplexing

* Supports SAE/J1850 VPW standard for in-vehicle class B

* Bus speed 10.4 kbps nominal

* Drive capability 32 bus nodes

* Low RFI due to output waveshaping with adjustable slew rate

* Direct battery operation with protection against +50V load dump

AU5780A General Description

The AU5780A is a line transceiver being primarily intended for in-vehicle multiplex applications. It provides interfacing between a link controller and the physical bus wire. The device supports the SAE/J1850 VPWM standard with a nominal bus speed of 10.4 kbps. PIN CONFIGURATION

* Bus term.

AU5780A Datasheet (82.08 KB)

AU5780A Datasheet Preview — Preview of AU5780A PDF

Datasheet Details

Part number:

AU5780A

Manufacturer:

NXP ↗

File Size:

82.08 KB

Description:

Sae/j1850/vpw transceiver.

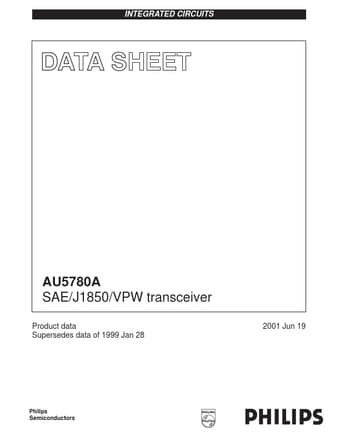

INTEGRATED CIRCUITS AU5780A SAE/J1850/VPW transceiver Product data Supersedes data of 1999 Jan 28 2001 Jun 19 Philips Semiconductors Philips Semico.
