BAV199W Datasheet - NXP

BAV199W - Low-leakage double diode

Epitaxial, medium-speed switching, double diode in a small plastic SOT323 (SC-70) SMD package.

The diodes are connected in series.

Marking code: JY- = made in Hong Kong; JYt = made in Malaysia.

1 Top view 2 MAM391 BAV199W PINNING PIN 1 2 3 anode cathode cathode; anode DESCRIPTION handbook, halfpa

BAV199W Features

* Small plastic SMD package

* Low leakage current: typ. 3 pA

* Switching time: typ. 0.8 µs

* Continuous reverse voltage: max. 75 V

* Repetitive peak reverse voltage: max. 85 V

* Repetitive peak forward current: max. 500 mA. APPLICATIONS

* Low-l

BAV199W_PhilipsSemiconductors.pdf

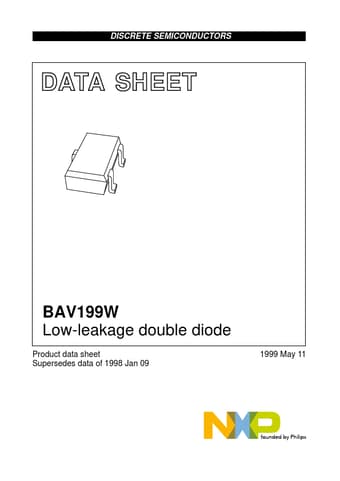

Preview of BAV199W PDF
