BAV23C - Dual high-voltage switching diodes

Product Overview

NXP

📥 Download Datasheet

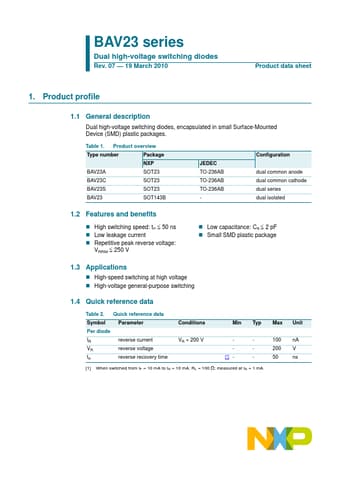

BAV23C Dual high-voltage switching diodes by NXP - Datasheet Preview — Datasheet preview – BAV23C

Datasheet Details

Part number	BAV23C
Manufacturer	NXP
File Size	107.91 KB
Description	Dual high-voltage switching diodes
Datasheet	BAV23C Datasheet
Note	This datasheet PDF includes multiple part numbers: BAV23C, BAV23. Please refer to the document for exact specifications by model.
Additional preview pages of the BAV23C datasheet.

Product details

Description

Dual high-voltage switching diodes, encapsulated in small Surface-Mounted Device (SMD) plastic packages.

Features

High switching speed: trr  50 ns.
Low leakage current.
Repetitive peak reverse voltage: VRRM  250 V.
Low capacitance: Cd  2 pF.
Small SMD plastic package 1.3.
