BB208-02 Datasheet, Diode, NXP

BB208-02 Features

• Diode s s s s s Very small SMD plastic packages Very low series resistance Excellent CV linearity Cd(1V): 21.5 pF; Cd(7.5V): 4.9 pF High ratio. 1.3 Applications s Voltage Controlled Oscillat

PDF File Details

Part number:

BB208-02

Manufacturer:

NXP ↗

File Size:

79.62kb

Download:

📄 Datasheet

Description:

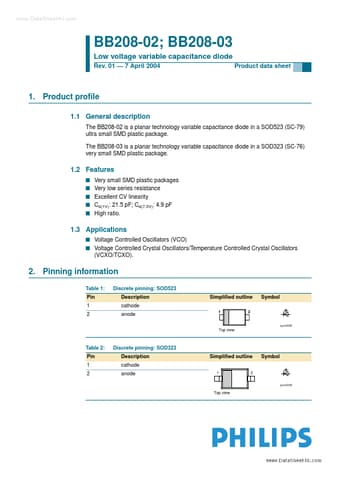

(bb208-02/-03) low voltage variable capacitance diode. The BB208-02 is a planar technology variable capacitance diode in a SOD523 (SC-79) ultra small SMD plastic package. The BB208-03 is a

BB208-02 Application

• Applications s Voltage Controlled Oscillators (VCO) s Voltage Controlled Crystal Oscillators/Temperature Controlled Crystal Oscillators (VCXO/TCXO).
