BB202

Low-voltage variable capacitance diode

BB202 Features

* Very steep C/V curve

* C0.2: 30.5 pF; C2.3: 9.5 pF

* C0.2 to C2.3 ratio: min. 2.5

* Very low series resistance

* Ultra small SMD plastic package. APPLICATIONS

* Electronic tuning in FM radio

* Voltage Controlled Oscillators (VCO). DESCRIPTION

BB202 General Description

The BB202 is a variable capacitance diode, fabricated in planar technology, and encapsulated in the SOD523 ultra small SMD plastic package. PINNING MARKING TYPE NUMBER BB202 BB202 MARKING CODE L2 PIN 1 2 The marking bar indicates the cathode. Fig.1 Simplified outline (SOD523) and symbol.   M.

BB202 Datasheet (51.84 KB)

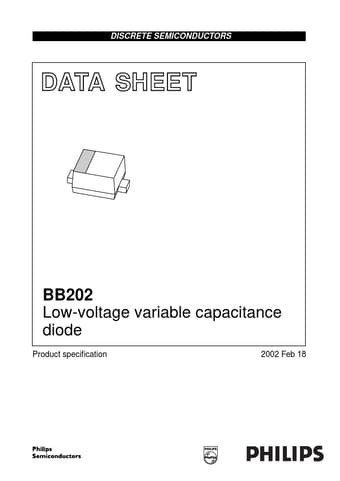

Preview of BB202 PDF
