BB204B

VHF variable capacitance double diodes

BB204B Features

* Selected capacitance ranges

* Leaded plastic package

* C30: 14 pF; ratio: 2.6. APPLICATIONS

* Electronic tuning in FM radio applications

* VCO. DESCRIPTION The BB204B, BB204G are variable capacitance double diodes with common cathodes, fabricated in planar t

BB204B General Description

The BB204B, BB204G are variable capacitance double diodes with common cathodes, fabricated in planar technology, and encapsulated in TO-92 variant leaded plastic packages. handbook, halfpage 1 BB204B; BB204G PINNING PIN 1 2 3 anode (a1) common cathode anode (a2) DESCRIPTION 2 3 1 2 3 MAM223 Fig..

BB204B Datasheet (31.52 KB)

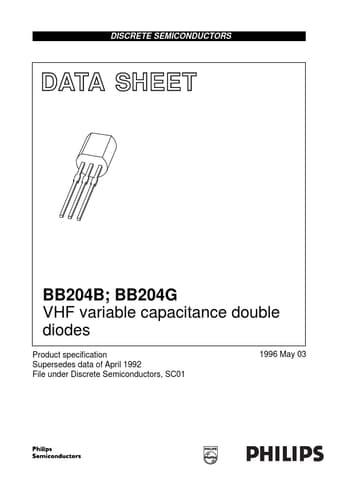

Preview of BB204B PDF

Datasheet Details

Part number:

BB204B

Manufacturer:

Philipss

File Size:

31.52 KB

Description:

Vhf variable capacitance double diodes.
DISCRETE SEMICONDUCTORS DATA SHEET alfpage M3D152 BB204B; BB204G VHF variable capacitance double diodes Product specification Supersedes data of Apr.
