BC859W - PNP general purpose transistors

NXP

📥 Download Datasheet

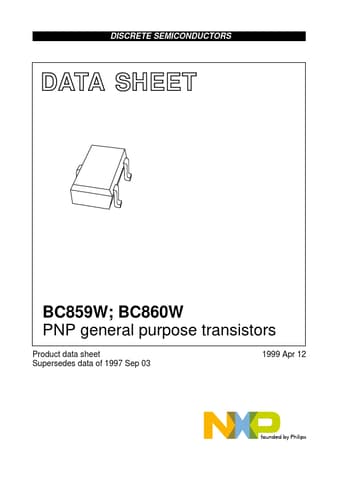

BC859W Datasheet Preview — Preview of BC859W PDF

Datasheet Details

Part number	BC859W
Manufacturer	NXP
File Size	62.18 KB
Description	PNP general purpose transistors
Datasheet	BC859W_PhilipsSemiconductors.pdf

BC859W Product details

Description

DESCRIPTION PNP transistor in a SOT323 plastic package.NPN complements: BC849W and BC850W.MARKING TYPE NUMBER BC859W BC859BW BC859CW MARKING CODE 4D∗ 4B∗ 4C∗ TYPE NUMBER BC860W BC860BW BC860CW Note 1. ∗ = - : Made in Hong Kong.∗ = t : Made in Malaysia.MARKING CODE 4H∗ 4F∗ 4G∗ handbook, halfpage 1 Top view 3 1 2 MAM048 3 2 Fig.1 Simplified outline (SOT323) and symbol.LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134).SYMBOL VCBO VCEO VEBO IC ICM IBM

Features

Low current (max. 100 mA).
Low voltage (max. 45 V).
