* Low current (max. 200 mA)
* Low voltage (max. 45 V). APPLICATIONS
* General purpose industrial applications. DESCRIPTION PNP transistor in a TO-18 metal package. 3 1 handbook, halfpage 2 BCY70; BCY71 PINNING PIN 1 2 3 emitter base collector, connected to case DESCRIPTION
BCY70
51.87 KB
Pnp general purpose transistors.

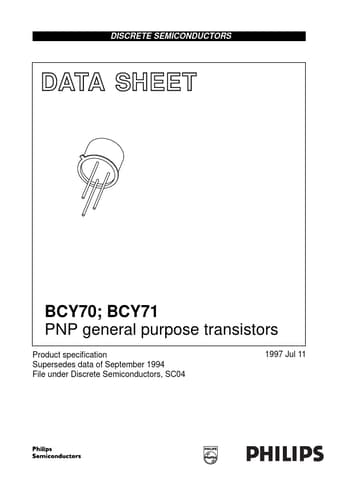

DISCRETE SEMICONDUCTORS
DATA SHEET
M3D361
BCY70; BCY71 PNP general purpose transistors
Product specification Supersedes data of September 1994 File .
