* A 1.40 (0.055) max. 0.31 rad. (0.012)
* Hermetic Surface Mount Package (SOT23 Compatible)
* CECC Screening Options available 1.02 ± 0.10 (0.04 ± 0.004) LCC1 PAD 1
* Base Underside View PAD 2
* Emitter PAD 3
* Collector ABSOLUTE MAXIMUM RATINGS (TA = 25°C
BCY71CSM
Seme LAB
20.39 KB
High speed medium power pnp switching transistor.
BCY70CSM BCY71CSM BCY72CSM
MECHANICAL DATA Dimensions in mm (inches)
0.51 ± 0.10 (0.02 ± 0.004)
0.31 rad. (0.012)

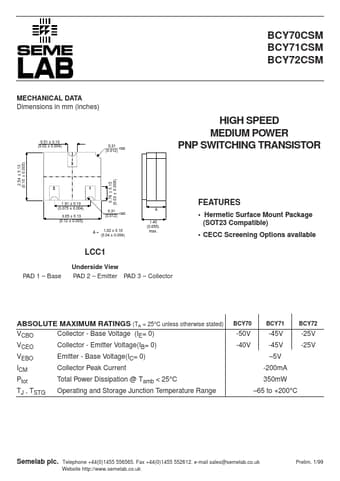

HIGH SPEED MEDIUM POWER PNP SWIT.
