BFQ245 Datasheet - NXP

BFQ245 PNP video transistor

PNP silicon transistor encapsulated in a 3-lead plastic SOT128B package. PINNING PIN 1 2 3 DESCRIPTION emitter collector base Fig.1 Simplified outline SOT128B. 1 2 3 MGA323 BFQ245 handbook, halfpage QUICK REFERENCE DATA SYMBOL VCBO IC Ptot fT Cre Tj PARAMETER collector-base voltage collector curr.

BFQ245_PhilipsSemiconductors.pdf

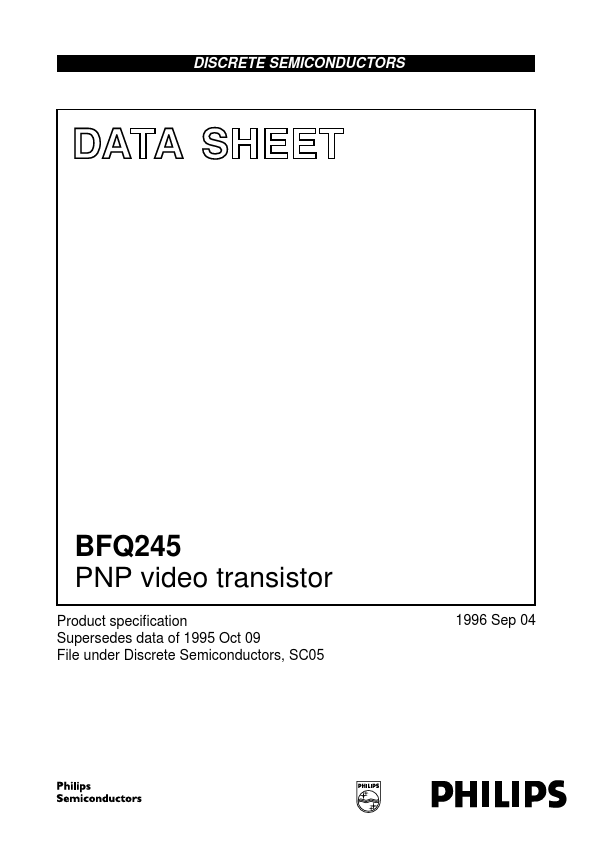

Preview of BFQ245 PDF

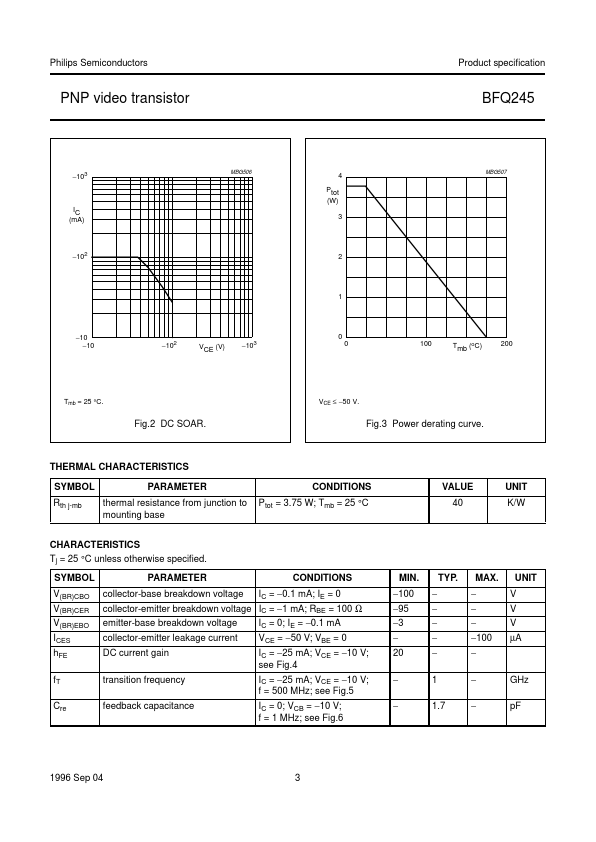

BFQ245 Datasheet Preview Page 2 BFQ245 Datasheet Preview Page 3

Datasheet Details

Part number:

BFQ245

Manufacturer:

NXP ↗

File Size:

45.88 KB

Description:

Pnp video transistor.
