BFR505 - NPN 9 GHz wideband transistor

Datasheet Summary

Description

1 BFR505 PINNING PIN 1 2 3 base emitter collector fpage DESCRIPTION Code: N30 3 2 MSB003 The BFR505 is an npn silicon planar epitaxial transistor, intended for applications in the RF frontend in wideband applications in the GHz range, such as analog and digital cellular telephones, cordless tel

Features

  • High power gain.
  • Low noise figure.
  • High transition frequency.
  • Gold metallization ensures excellent reliability.

📥 Download Datasheet

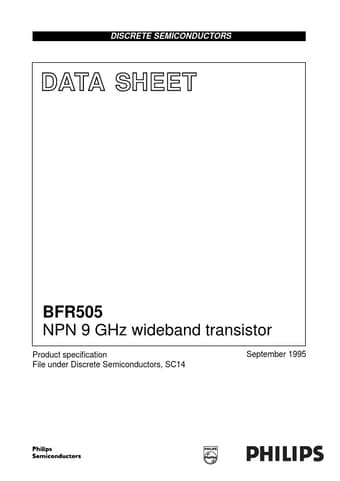

Datasheet preview – BFR505

Datasheet Details

Part number BFR505
Manufacturer NXP
File Size 120.89 KB
Description NPN 9 GHz wideband transistor
Datasheet download datasheet BFR505 Datasheet
