BFR520T - NPN 9 GHz wideband transistor

Datasheet Summary

Description

NPN transistor in a plastic SOT416 (SC75) envelope.

It is intended for wideband applications such as satellite TV tuners, cellular phones, cordless phones, pagers etc., with signal frequencies up to 2 GHz.

Features

High power gain.
Low noise figure.
High transition frequency.
Gold metallization ensures excellent reliability.
SOT416 (SC75) envelope.

Datasheet Details

Part number	BFR520T
Manufacturer	NXP
File Size	147.81 KB
Description	NPN 9 GHz wideband transistor
Datasheet	BFR520T Datasheet
Additional preview pages of the BFR520T datasheet.

📁 Similar Datasheet

BFR520 - NPN Transistor (INCHANGE)

BFR540 - NPN Transistor (INCHANGE)

BFR10 - NPN Transistor (SGS-ATES)

BFR106 - NPN Silicon RF Transistor (Siemens Semiconductor Group)

BFR106 - Low Noise Silicon Bipolar RF Transistor (Infineon Technologies AG)

BFR106 - NPN Transistor (INCHANGE)

BFR11 - NPN Transistor (SGS-ATES)

BFR14B - NPN SILICON MICROWAVE TRANSISTOR (Siemens Semiconductor Group)

BFR14C - NPN SILICON MICROWAVE TRANSISTOR (Siemens Semiconductor Group)

BFR16 - NPN Transistor (SGS-ATES)

Full PDF Text Transcription

Click to expand full text

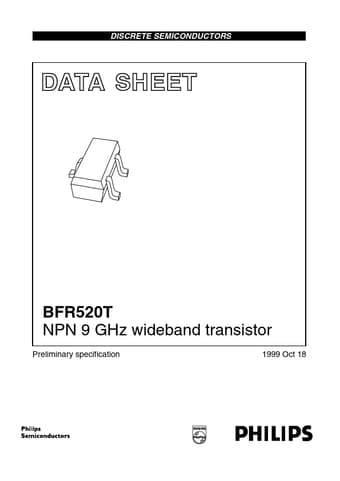

DISCRETE SEMICONDUCTORS DATA SHEET M3D173 BFR520T NPN 9 GHz wideband transistor Preliminary specification 1999 Oct 18 Philips Semiconductors Preliminary specification NPN 9 GHz wideband transistor FEATURES • High power gain • Low noise figure • High transition frequency • Gold metallization ensures excellent reliability • SOT416 (SC75) envelope. DESCRIPTION NPN transistor in a plastic SOT416 (SC75) envelope. It is intended for wideband applications such as satellite TV tuners, cellular phones, cordless phones, pagers etc., with signal frequencies up to 2 GHz. handbook, halfpage BFR520T PINNING PIN 1 2 3 base emitter collector DESCRIPTION Code: N2 3 1 2 MAM337 Fig.1 SOT416.
