BFR505T - NPN 9 GHz wideband transistor

Datasheet Summary

Description

NPN transistor in a plastic SOT416 (SC-75) package.

Fig.1 SOT416.

MAX.

1.7 UNIT V V mA mW GHz dB dB IC = 5 mA; VCE = 6 V; f = 900 MHz; Tamb = 25 °C IC = 1.25 mA; VCE = 6 V; f = 900 MHz; Tamb = 25 °C

Features

  • Low current consumption.
  • High power gain.
  • Low noise figure.
  • High transition frequency.
  • Gold metallization ensures excellent reliability.
  • SOT416 (SC-75) package.

📥 Download Datasheet

Datasheet preview – BFR505T

Datasheet Details

Part number BFR505T
Manufacturer NXP
File Size 103.54 KB
Description NPN 9 GHz wideband transistor
Datasheet download datasheet BFR505T Datasheet
Additional preview pages of the BFR505T datasheet.

📁 Similar Datasheet

  • BFR520 - NPN Transistor (INCHANGE)
  • BFR540 - NPN Transistor (INCHANGE)
  • BFR10 - NPN Transistor (SGS-ATES)
  • BFR106 - NPN Silicon RF Transistor (Siemens Semiconductor Group)
  • BFR106 - Low Noise Silicon Bipolar RF Transistor (Infineon Technologies AG)
  • BFR106 - NPN Transistor (INCHANGE)
  • BFR11 - NPN Transistor (SGS-ATES)
  • BFR14B - NPN SILICON MICROWAVE TRANSISTOR (Siemens Semiconductor Group)
  • BFR14C - NPN SILICON MICROWAVE TRANSISTOR (Siemens Semiconductor Group)
  • BFR16 - NPN Transistor (SGS-ATES)
Other Datasheets by NXP
  • BFR505 - NPN 9 GHz wideband transistor
  • BFR520 - NPN 9 GHz wideband transistor
  • BFR520T - NPN 9 GHz wideband transistor
  • BFR53 - NPN 2 GHz wideband transistor
  • BFR54 - NPN 9 GHz wideband transistor
  • BFR54 - NPN medium frequency transistor
  • BFR540 - NPN 9GHz wideband transistor
  • BFR106 - NPN 5 GHz wideband transistor

Full PDF Text Transcription

Click to expand full text

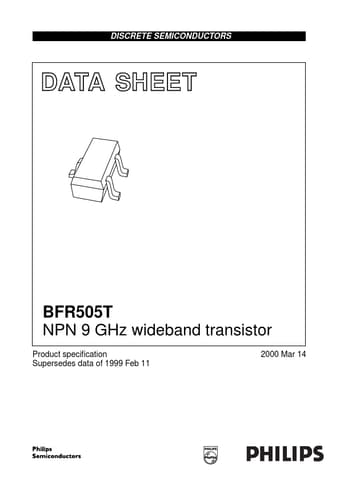

DISCRETE SEMICONDUCTORS DATA SHEET M3D173 BFR505T NPN 9 GHz wideband transistor Product specification Supersedes data of 1999 Feb 11 2000 Mar 14 Philips Semiconductors Product specification NPN 9 GHz wideband transistor FEATURES • Low current consumption • High power gain • Low noise figure • High transition frequency • Gold metallization ensures excellent reliability • SOT416 (SC-75) package. APPLICATIONS Low power amplifiers, oscillators and mixers particularly in RF portable communication equipment (cellular phones, cordless phones and pagers) up to 2 GHz.
