BGY687B Datasheet - NXP

CATV amplifier

BGY687B General Description

Hybrid high dynamic range amplifier module designed for CATV systems operating over a frequency range of 40 to 600 MHz at a voltage supply of 24 V (DC). QUICK REFERENCE DATA SYMBOL Gp Itot PARAMETER power gain total current consumption (DC) CONDITIONS f = 50 MHz f = 600 MHz VB = 24 V MIN. 26.2 27.8 .

BGY687B Datasheet (49.52 KB)

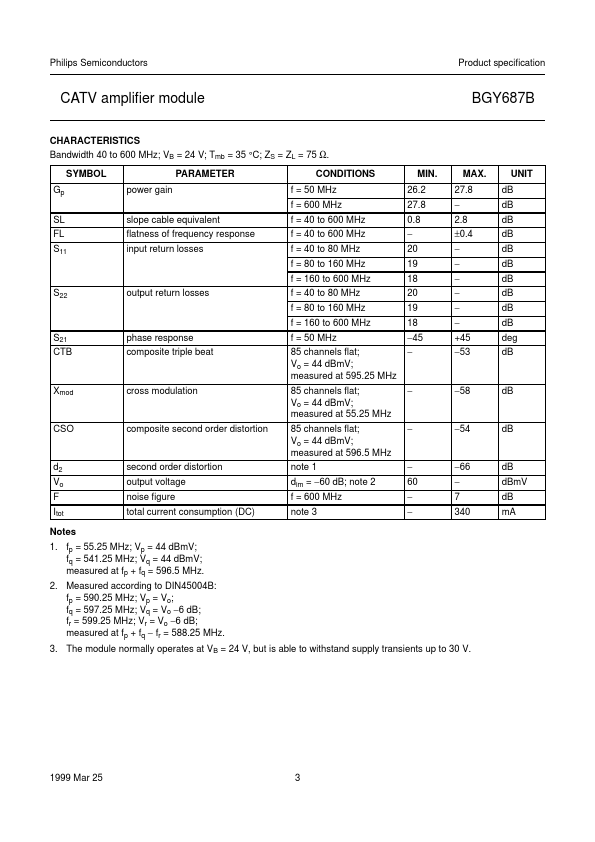

BGY687B Datasheet Preview — Preview of BGY687B PDF

Datasheet Details

Part number:

BGY687B

Manufacturer:

NXP ↗

File Size:

49.52 KB

Description:

Catv amplifier.
DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D252 BGY687B CATV amplifier module Product speciﬁcation Supersedes data of February 1994 1999 M.
