BGY683 Datasheet - NXP

Datasheet Details

Part number:

BGY683

Manufacturer:

File Size:

19.96 KB

Description:

Catv amplifier.

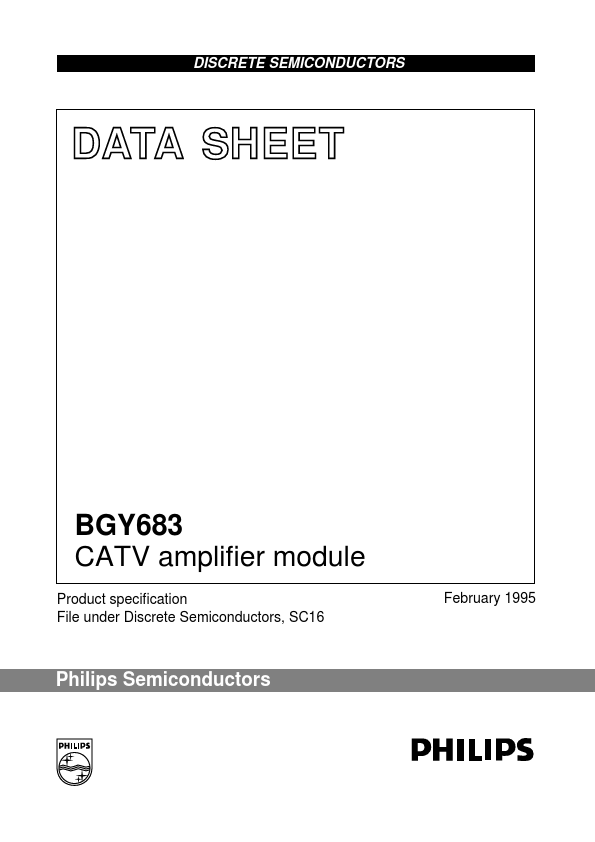

BGY683, CATV amplifier

Hybrid high dynamic range amplifier module for CATV systems operating over a frequency range of 40 to 600 MHz at a voltage supply of +24 V (DC).

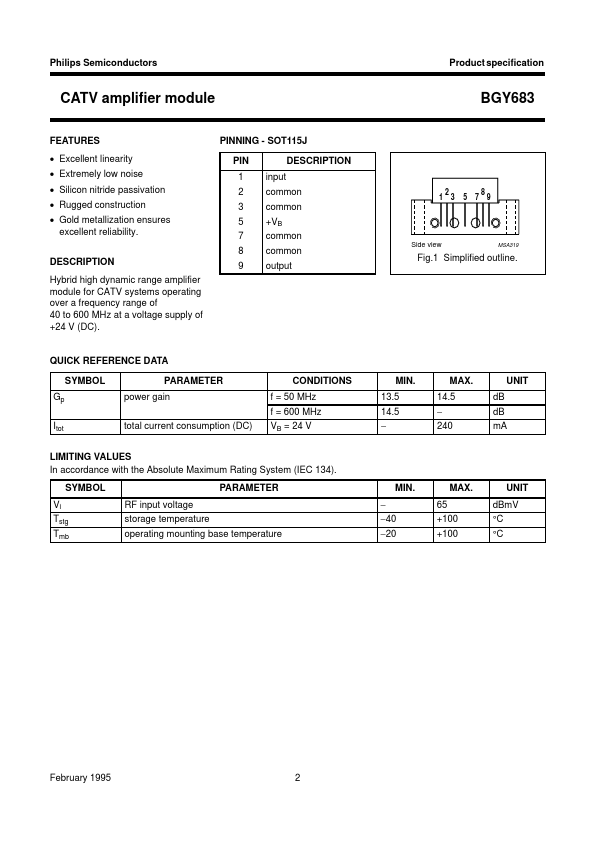

PINNING - SOT115J PIN 1 2 3 5 7 8 9 input common common +VB common common output Side view BGY683 DESCRIPTION fpage 1 2 3 8 5 7 9 MSA319 Fig.1 Simp
