BGY685AL CATV amplifier

NXP

Description

DISCRETE SEMICONDUCTORS DATA SHEET BGY685AL CATV amplifier module Product speciﬁcation Supersedes data of February 1995 File under Discrete Semicond.
Hybrid high dynamic range amplifier module designed for applications in CATV systems operating over a frequency range of 40 MHz to 600 MHz operating w.

📥 Download Datasheet

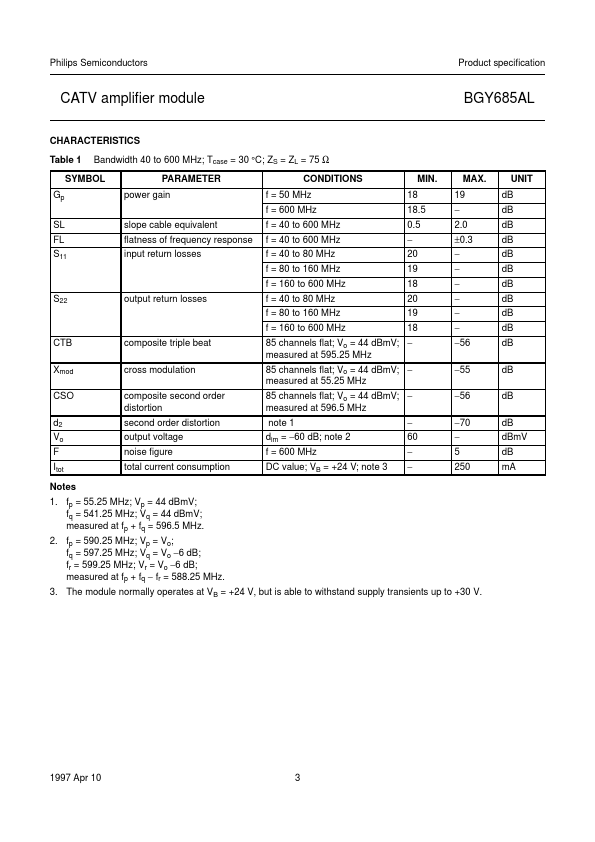

BGY685AL Datasheet Preview — Preview of BGY685AL PDF

Datasheet Specifications

Part number: BGY685AL
Manufacturer: NXP ↗
File Size: 62.30 KB
Datasheet: BGY685AL_PhilipsSemiconductors.pdf
Description: CATV amplifier

Features

* Excellent linearity
* Extremely low noise
* Silicon nitride passivation
* Rugged construction

Applications

* in CATV systems operating over a frequency range of 40 MHz to 600 MHz operating with a voltage supply of +24 V (DC). QUICK REFERENCE DATA SYMBOL Gp Itot PARAMETER power gain total current consumption (DC) CONDITIONS f = 50 MHz f = 600 MHz VB = +24 V MIN. 18 18.5
* PINNING - SOT115J
