BGY785A Datasheet - NXP

CATV Amplifier

BGY785A General Description

Hybrid high dynamic range cascode amplifier module in a SOT115J package operating with a voltage supply of 24 V (DC). Side view BGY785A PINNING - SOT115J PIN 1 2 3 5 7 8 9 input common common +VB common common output DESCRIPTION handbook, halfpage 1 2 3 5 7 8 9 MSA319 Fig.1 Simplified out.

BGY785A Datasheet (54.59 KB)

BGY785A Datasheet Preview — Preview of BGY785A PDF

Datasheet Details

Part number:

BGY785A

Manufacturer:

NXP ↗

File Size:

54.59 KB

Description:

Catv amplifier.

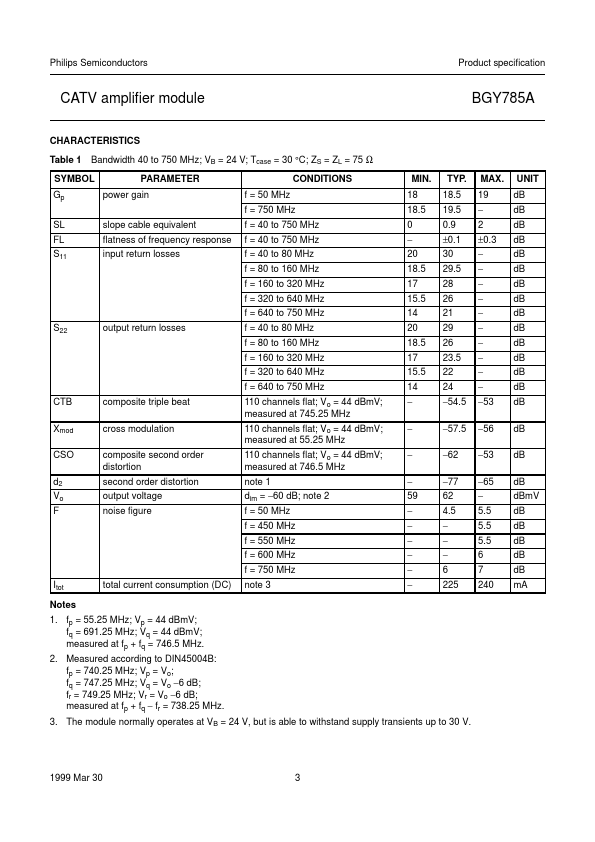

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D252 BGY785A CATV amplifier module Product speciﬁcation Supersedes data of 1997 Apr 10 1999 Mar.
