BGY785AD Datasheet - NXP

CATV Amplifier

BGY785AD General Description

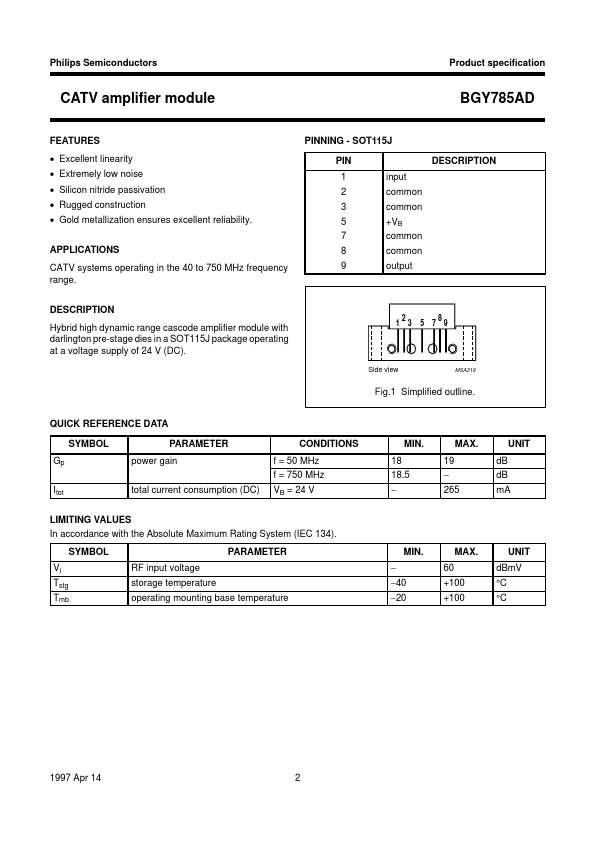

Hybrid high dynamic range cascode amplifier module with darlington pre-stage dies in a SOT115J package operating at a voltage supply of 24 V (DC). PINNING - SOT115J PIN 1 2 3 5 7 8 9 input common common +VB common common output BGY785AD DESCRIPTION handbook, halfpage 1 2 3 8 5 7 9 Side view .

BGY785AD Datasheet (66.89 KB)

BGY785AD Datasheet Preview — Preview of BGY785AD PDF

Datasheet Details

Part number:

BGY785AD

Manufacturer:

NXP ↗

File Size:

66.89 KB

Description:

Catv amplifier.

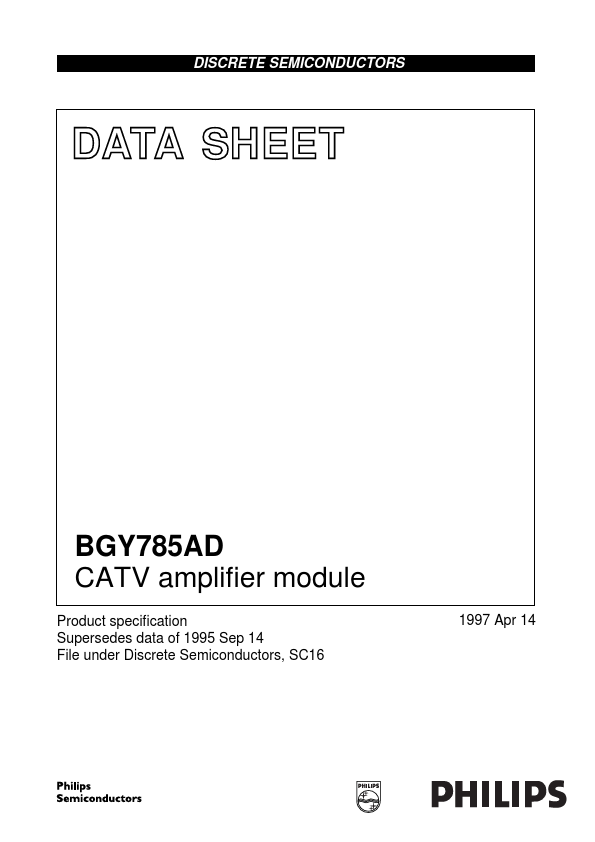

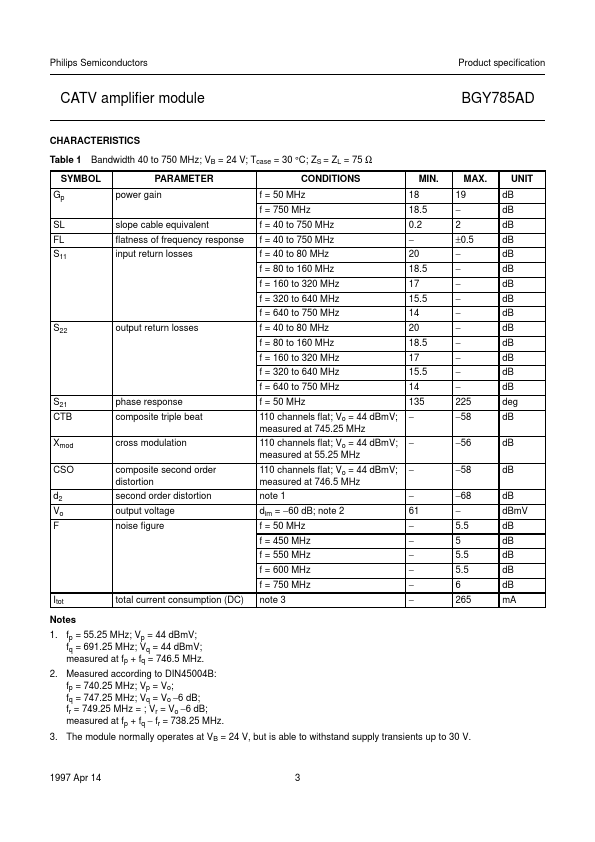

DISCRETE SEMICONDUCTORS DATA SHEET BGY785AD CATV amplifier module Product speciﬁcation Supersedes data of 1995 Sep 14 File under Discrete Semiconduc.
