BSS84AKT P-Channel MOSFET

BSS84AKT Description

SO T4 16 BSS84AKT 50 V, 150 mA P-channel Trench MOSFET Rev.1 * 23 May 2011 Product data sheet 1.Product profile 1.1 General .
P-channel enhancement mode Field-Effect Transistor (FET) in a small SOT416 (SC-75) Surface-Mounted Device (SMD) plastic package using Trench MOSFET te.

BSS84AKT Features

* Logic-level compatible
* Very fast switching
* Trench MOSFET technology
* ESD protection up to 1 kV

BSS84AKT Applications

* Relay driver
* High-speed line driver
* High-side loadswitch
* Switching circuits 1.4 Quick reference data Table 1. Symbol VDS VGS ID RDSon Quick reference data Parameter drain-source voltage gate-source voltage drain current drain-source on-state resistance VGS =

📥 Download Datasheet

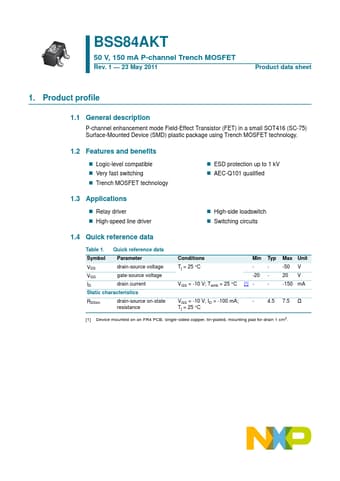

Preview of BSS84AKT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BSS84AKT
Manufacturer
NXP ↗
File Size
315.68 KB
Datasheet
BSS84AKT-NXP.pdf
Description
P-Channel MOSFET
