BT137X-600D - 4Q Triac

Name: BT137X-600D
SKU: BT137X-600D-121752

NXP

📥 Download Datasheet

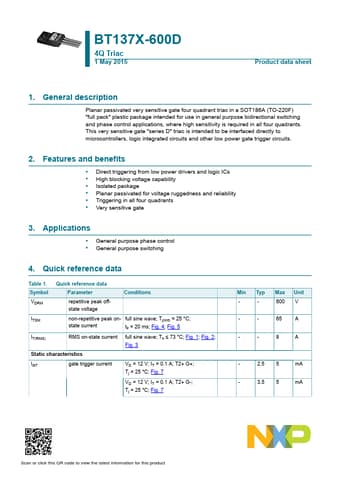

BT137X-600D Datasheet Preview — Preview of BT137X-600D PDF

Datasheet Details

Part number	BT137X-600D
Manufacturer	NXP
File Size	190.02 KB
Description	4Q Triac
Datasheet	BT137X-600D_PhilipsSemiconductors.pdf

BT137X-600D Product details

Description

Planar passivated very sensitive gate four quadrant triac in a SOT186A (TO-220F) "full pack" plastic package intended for use in general purpose bidirectional switching and phase control applications, where high sensitivity is required in all four quadrants.

Features

Direct triggering from low power drivers and logic ICs.
High blocking voltage capability.
Isolated package.
Planar passivated for voltage ruggedness and reliability.
Triggering in all four quadrants.
Very sensitive gate 3.
