BT150S-600R Datasheet - NXP

BT150S-600R, SCR

DPAK BT150S-600R SCR 17 March 2014 Product data sheet 1.General .
Planar passivated SCR with sensitive gate in a SOT428 (DPAK) surface mountable plastic package.

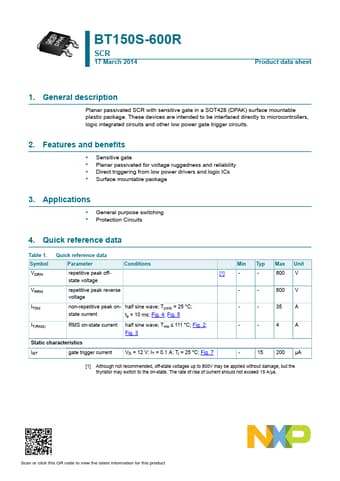

datasheet Preview Page 1 from Datasheet4u.com

BT150S-600R_PhilipsSemiconductors.pdf

BT150S-600R Datasheet Preview — Preview of BT150S-600R PDF

Datasheet Details

Part number:

BT150S-600R

Manufacturer:

NXP ↗

File Size:

215.75 KB

Description:

SCR

Features

* Sensitive gate
* Planar passivated for voltage ruggedness and reliability
* Direct triggering from low power drivers and logic ICs

Applications

* General purpose switching
* Protection Circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions VDRM repetitive peak offstate voltage [1] VRRM repetitive peak reverse voltage ITSM non-repetitive peak on- half sine wave; Tj(init) = 25 °C;
