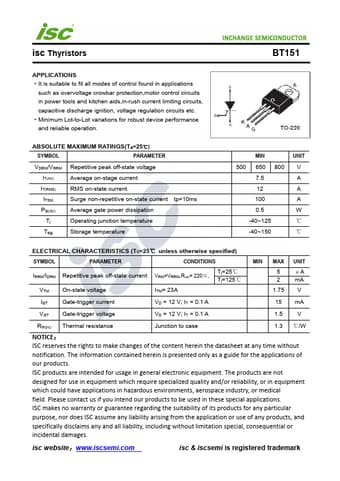

isc Thyristors
BT151
APPLICATIONS ·It is suitable to fit all modes of control found in applications
such as overvoltage crowbar protection,motor control circuits in power tools and kitchen aids,in-rush current limiting circuits, capacitive discharge ignition, voltage regulation circuits etc. ·Minimum Lot-to-Lot variations for robust device performance and reliable operation.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VDRM/VRRM Repetitive peak off-state voltage
IT(AV)
Average on-stage current
IT(RMS)
RMS on-state current
ITSM
Surge non-repetitive on-state current tp=10ms
PG(AV)
Average gate power dissipation
Tj
Operating junction temperature
Tstg
Storage temperature
MIN
500 650 800 7.5 12 100 0.
