DAC-08EN - 8-bit high-speed multiplying D/A converter

Product Overview

NXP

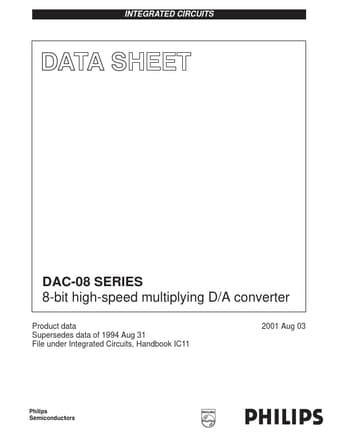

DAC-08EN 8-bit high-speed multiplying D/A converter by NXP - Datasheet Preview — Datasheet preview – DAC-08EN

Datasheet Details

Part number	DAC-08EN
Manufacturer	NXP
File Size	162.77 KB
Description	8-bit high-speed multiplying D/A converter
Datasheet	DAC-08EN Datasheet
Additional preview pages of the DAC-08EN datasheet.

Product details

Description

The DAC-08 series of 8-bit monolithic multiplying Digital-to-Analog Converters provide very high-speed performance coupled with low cost and outstanding applications flexibility.

Features

IO 6 V.
7 IO 8.
Fast settling output current.
70 ns.
Full-scale current prematched to ±1 LSB.
Direct interface to TTL, CMOS, ECL, HTL, PMOS.
Relative accuracy to 0.1% maximum over temperature range.
High output compliance.
10 V to +18 V.
True and complemented outputs.
Wide range multiplying capability.
Low FS current drift.
±10ppm/°C.
Wide power supply range.
±4.5 V to ±18 V.
