DAC1201D125 - Dual 12-bit DAC

Name: DAC1201D125
SKU: DAC1201D125-1055138

NXP

📥 Download Datasheet

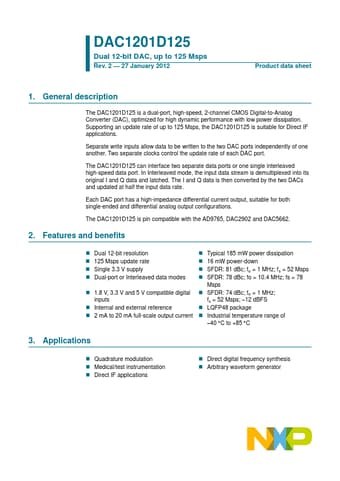

DAC1201D125 Datasheet Preview — Preview of DAC1201D125 PDF

Datasheet Details

Part number	DAC1201D125
Manufacturer	NXP
File Size	297.12 KB
Description	Dual 12-bit DAC
Datasheet	DAC1201D125-NXP.pdf

DAC1201D125 Product details

Description

The DAC1201D125 is a dual-port, high-speed, 2-channel CMOS Digital-to-Analog Converter (DAC), optimized for high dynamic performance with low power dissipation.

Features

Dual 12-bit resolution.
125 Msps update rate.
Single 3.3 V supply.
Dual-port or Interleaved data modes.
1.8 V, 3.3 V and 5 V compatible digital inputs.
Internal and external reference.
2 mA to 20 mA full-scale output current.
Typical 185 mW power dissipation.
16 mW power-down.
SFDR: 81 dBc; fo = 1 MHz; fs = 52 Msps.
SFDR: 78 dBc; fo = 10.4 MHz; fs = 78 Msps.
SFDR: 74 dBc; fo = 1 MHz; fs = 52 Msps; 12 dBFS.
LQFP48 package.
