HCT4016 - Quad bilateral switches

HCT4016 Description

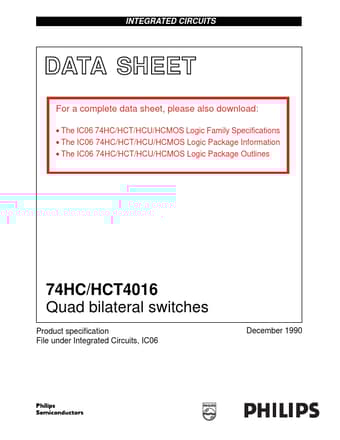

INTEGRATED CIRCUITS DATA SHEET For a complete data sheet, please also download: * The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications The 74HC/HCT4016 are high-speed Si-gate CMOS devices and are pin compatible with the “4016” of the QUICK REFERENCE DATA GND = 0 V; Tamb = 25 °C; tr =.

HCT4016 Features

* Low “ON” resistance: 160 Ω (typ. ) at VCC = 4.5 V 120 Ω (typ. ) at VCC = 6.0 V 80 Ω (typ. ) at VCC = 9.0 V
* Individual switch controls
* Typical “break before make” built in
* Output capability: non-standard

HCT4016 Applications

* Signal gating
* Modulation
* Demodulation
* Chopper Fig.4 Functional diagram. 74HC/HCT4016 FUNCTION TABLE INPUT En L H Notes 1. H = HIGH voltage level L = LOW voltage level CHANNEL IMPEDANCE high low Fig.5 Schematic diagram (one switch). December 1990 4 Philip
