HCT04 Datasheet - System Logic Semiconductor

HCT04 Hex Inverter

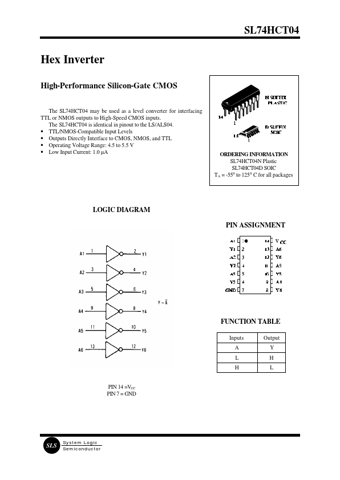

SL74HCT04 Hex Inverter High-Performance Silicon-Gate CMOS The SL74HCT04 may be used as a level converter for interfacing TTL or NMOS outputs to High-Speed CMOS inputs. The SL74HCT04 is identical in pinout to the LS/ALS04. TTL/NMOS-Compatible Input Levels Outputs Directly Interface to CMOS, NMOS, and TTL Operating Voltage Range: 4.5 to 5.5 V Low Input Current: 1.0 µA ORDERING INFORMATION SL74HCT04N Plastic SL74HCT04D SOIC TA = -55° to 125° C for all packa.

HCT04_SystemLogicSemiconductor.pdf

Preview of HCT04 PDF
HCT04 Datasheet Preview Page 2 HCT04 Datasheet Preview Page 3

Datasheet Details

Part number:

HCT04

Manufacturer:

System Logic Semiconductor

File Size:

33.70 KB

Description:

Hex inverter.
