HCT32 Datasheet - System Logic Semiconductor

HCT32 Quad 2-Input OR Gate

SL74HCT32 Quad 2-Input OR Gate High-Performance Silicon-Gate CMOS The SL74HCT32 may be used as a level converter for interfacing TTL or NMOS outputs to High-Speed CMOS inputs. The SL74HCT32 is identical in pinout to the LS/ALS32. TTL/NMOS-Compatible Input Levels. Outputs Directly Interface to CMOS, NMOS, and TTL Operating Voltage Range: 4.5 to 5.5 V Low Input Current: 1.0 µA ORDERING INFORMATION SL74HCT32N Plastic SL74HCT32D SOIC TA = -55° to 125° C for a.

HCT32_SystemLogicSemiconductor.pdf

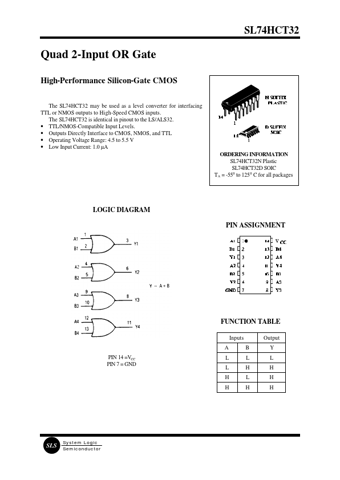

Preview of HCT32 PDF
HCT32 Datasheet Preview Page 2 HCT32 Datasheet Preview Page 3

Datasheet Details

Part number:

HCT32

Manufacturer:

System Logic Semiconductor

File Size:

35.76 KB

Description:

Quad 2-input or gate.
