HCT373 Datasheet - System Logic Semiconductor

HCT373 Octal 3-State Noninverting Transparent Latch

SL74HCT373 Octal 3-State Noninverting Transparent Latch High-Performance Silicon-Gate CMOS The SL74HCT373 may be used as a level converter for interfacing TTL or NMOS outputs to High-Speed CMOS inputs. The SL74HCT373 is identical in pinout to the LS/ALS373. The eight latches of the SL74HCT373 are transparent D -type latches. While the Latch Enable is high the Q outputs follow the Data Inputs. When Latch Enable is taken low, data meeting the setup and hold times becomes latched. The Output Enabl.

HCT373_SystemLogicSemiconductor.pdf

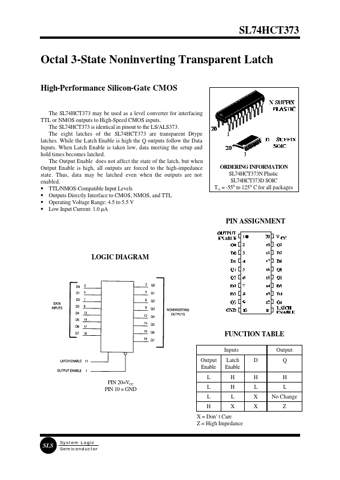

Preview of HCT373 PDF
HCT373 Datasheet Preview Page 2 HCT373 Datasheet Preview Page 3

Datasheet Details

Part number:

HCT373

Manufacturer:

System Logic Semiconductor

File Size:

52.62 KB

Description:

Octal 3-state noninverting transparent latch.
