HCT240 Datasheet - System Logic Semiconductor

HCT240 Octal 3-State Inverting Buffer/Line Driver/Line Receiver

SL74HCT240 Octal 3-State Inverting Buffer/Line Driver/Line Receiver High-Performance Silicon-Gate CMOS The SL74HCT240 is identical in pinout to the LS/ALS240. The SL74HCT240 may be used as a level converter for interfacing TTL or NMOS outputs to High Speed CMOS inputs. This octal inverting buffer/line driver/line receiver is designed to be used with 3-state memory address drivers, clock drivers, and other busoriented systems. The device has inverting outputs and two active-low output enables. <.

HCT240_SystemLogicSemiconductor.pdf

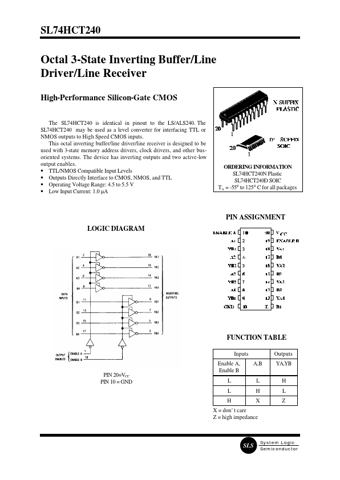

Preview of HCT240 PDF
HCT240 Datasheet Preview Page 2 HCT240 Datasheet Preview Page 3

Datasheet Details

Part number:

HCT240

Manufacturer:

System Logic Semiconductor

File Size:

47.76 KB

Description:

Octal 3-state inverting buffer/line driver/line receiver.
