KMI17-4

Rotational speed sensor

KMI17-4 Features

* System in package

* Two wire standard current interface

* Large range of operating terminal voltage

* Wide temperature range

* High ElectroStatic Discharge (ESD) protection

* Very low jitter

* Automotive qualified in accordance with AEC-Q100 Rev-G (grade 0)

* Custom

KMI17-4 General Description

Based on the Anisotropic MagnetoResistive (AMR) effect, the KMI17/4 detects the rotational speed of passive target wheels (i.e. having ferromagnetic teeth). This design delivers secure speed information over a wide range of speed, air gap and temperature. It delivers the speed information via a curr.

KMI17-4 Datasheet (222.98 KB)

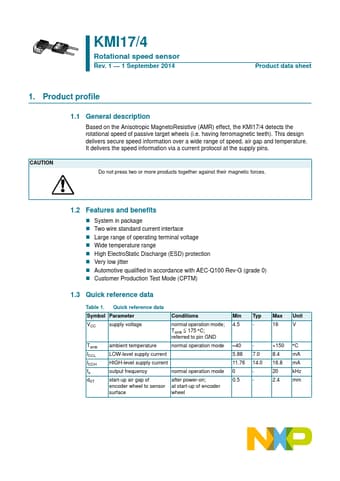

Preview of KMI17-4 PDF

Datasheet Details

Part number:

KMI17-4

Manufacturer:

NXP ↗

File Size:

222.98 KB

Description:

Rotational speed sensor.
