KMI20-2

Rotational speed sensor

KMI20-2 Features

* Digital current output signal

* Digital offset compensation

* Extended air gap

* Zero speed capability

* Wide temperature range

* High tolerance to vibration

* EMC resistant

* Tolerant to positioning. PINNING PIN 1 2 handbook, halfpa

KMI20-2 General Description

The KMI20/2 sensor detects rotational speed of magnetized targets(1). The sensor consists of a magnetoresistive sensor element, a driver IC in BIMOS technology, a digital signal conditioning IC in highly integrated CMOS technology and a ferrite magnet. The frequency of the digital current output sig.

KMI20-2 Datasheet (72.03 KB)

Preview of KMI20-2 PDF

Datasheet Details

Part number:

KMI20-2

Manufacturer:

Philips

File Size:

72.03 KB

Description:

Rotational speed sensor.

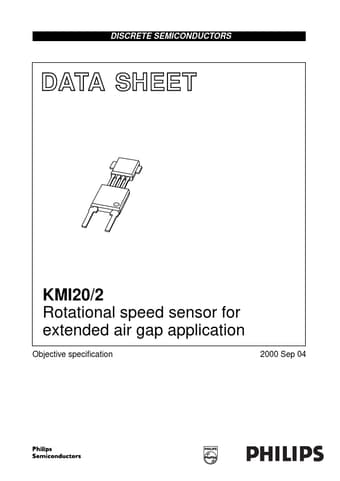

DISCRETE SEMICONDUCTORS DATA SHEET handbook, halfpage M3D281 KMI20/2 Rotational speed sensor for extended air gap application Objective speciļ¬cati.
