LPC1810FBD144 - 32-bit ARM Cortex-M3 flashless MCU

Product Overview

NXP

📥 Download Datasheet

LPC1810FBD144 32-bit ARM Cortex-M3 flashless MCU by NXP - Datasheet Preview — Datasheet preview – LPC1810FBD144

Datasheet Details

Part number	LPC1810FBD144
Manufacturer	NXP
File Size	2.58 MB
Description	32-bit ARM Cortex-M3 flashless MCU
Datasheet	LPC1810FBD144 Datasheet
Note	This datasheet PDF includes multiple part numbers: LPC1810FBD144, LPC1850. Please refer to the document for exact specifications by model.

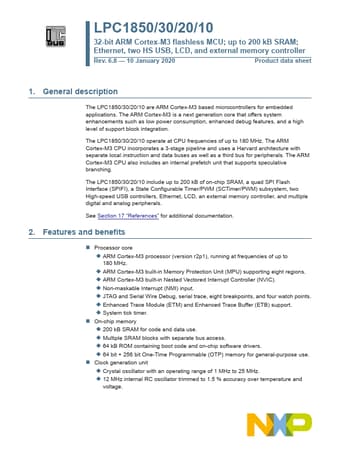

Additional preview pages of the LPC1810FBD144 datasheet.

Product details

Description

The LPC1850/30/20/10 are ARM Cortex-M3 based microcontrollers for embedded applications.

Features

Processor core.
ARM Cortex-M3 processor (version r2p1), running at frequencies of up to 180 MHz.
ARM Cortex-M3 built-in Memory Protection Unit (MPU) supporting eight regions.
ARM Cortex-M3 built-in Nested Vectored Interrupt Controller (NVIC).
Non-maskable Interrupt (NMI) input.
JTAG and Serial Wire Debug, serial trace, eight breakpoints, and four watch points.
Enhanced Trace Module (ETM) and Enhanced Trace Buffer (ETB) support.
System tick timer.
