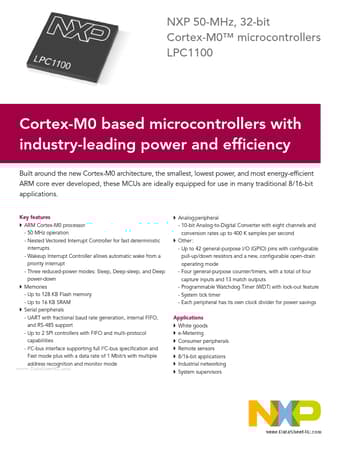

LPC1100 Datasheet | NXP Semiconductors

atures } ARM Cortex-M0 processor - 50 MHz operation -N ested Vectored Interrupt Controller for fast deterministic interrupts -W akeup Interrupt Controller allows automatic wake from a priority interrupt -T hree reduced-power modes: Sleep, Deep-sleep, and Deep power-down } Memories - Up to 128 KB Flash memory - Up to 16 KB SRAM } Serial peripherals -U ART with fractional baud rate generation, internal FIFO, and RS-485 support -U p to 2 SPI controllers with FIFO and multi-protocol capabilities -I 2C-bus interface supporting full I2C-bus specification and Fast mode plus with a data rate of 1 Mbit/s with multiple address recognition and monitor mode .. } Analog peripheral - 10-bit Analog-to-Digital Converter with eight channels and conversion rates up to 400 K samples per second } Other : - Up to 42 general-purpose I/O (GPIO) pins with configurable pull-up/down resistors and a new, configurable open-drain operating mode - Four general-purpose counter/timers, with a total of four capture inputs and 13 match outputs - Programmable Watchdog Timer (WDT) with lock-out feature - System tick timer - Each peripheral has its own clock divider for power savings Applications } White goods } e-Metering } Consumer peripherals } Remote sensors } 8/16-bit applications } Industrial networking } System supervisors NXP’s LPC1100 is the lowest-priced 32-bit MCU solution in the market. It offers greater value than existing 8/16-bit microcontroller by delivering unprecedented performance, simplicity, low power, and dramatic reductions in code size for every application. With over 45 DMIPS of performance pared to the sub-DMIP performance typical of 8-bit MCUs and 3 to 5 DMIPS for 16-bit MCUs, the LPC1100 not only execute basic control tasks but sophisticated algorithms as well, making even the most plex tasks within reach. Using less time to do more tasks translates directly into lower energy consumption. This level of performance is delivered at 50 MHz, with...
