LPC1110 Datasheet - NXP

(LPC1110 - LPC1115) 32-bit ARM Cortex-M0 microcontroller

LPC1110 Features

* System:

* ARM Cortex-M0 processor, running at frequencies of up to 50 MHz.

* ARM Cortex-M0 built-in Nested Vectored Interrupt Controller (NVIC).

* Non-Maskable Interrupt (NMI) input selectable from several input sources (LPC1100XL series only).

* Serial Wire Debug.

* System

LPC1110 General Description

The LPC1110/11/12/13/14/15 are an ARM Cortex-M0 based, low-cost 32-bit MCU family, designed for 8/16-bit microcontroller applications, offering performance, low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures. The LPC111.

LPC1110 Datasheet (1.21 MB)

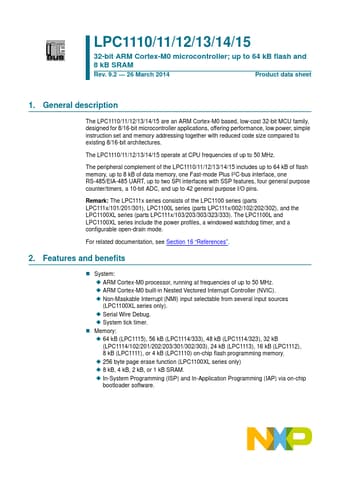

Preview of LPC1110 PDF

Datasheet Details

Part number:

LPC1110

Manufacturer:

NXP ↗

File Size:

1.21 MB

Description:

(lpc1110 - lpc1115) 32-bit arm cortex-m0 microcontroller.
LPC1110/11/12/13/14/15 32-bit ARM Cortex-M0 microcontroller; up to 64 kB flash and 8 kB SRAM Rev. 9.2 26 March 2014 Product data sheet 1.
