LPC1112, LPC1110 Datasheet - NXP

LPC1112 (LPC1110 - LPC1115) 32-bit ARM Cortex-M0 microcontroller

The LPC1110/11/12/13/14/15 are an ARM Cortex-M0 based, low-cost 32-bit MCU family, designed for 8/16-bit microcontroller applications, offering performance, low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures. The LPC111.

LPC1112 Features

* System:

* ARM Cortex-M0 processor, running at frequencies of up to 50 MHz.

* ARM Cortex-M0 built-in Nested Vectored Interrupt Controller (NVIC).

* Non-Maskable Interrupt (NMI) input selectable from several input sources (LPC1100XL series only).

* Serial Wire Debug.

* System

LPC1110_NXP.pdf

This datasheet PDF includes multiple part numbers: LPC1112, LPC1110. Please refer to the document for exact specifications by model.

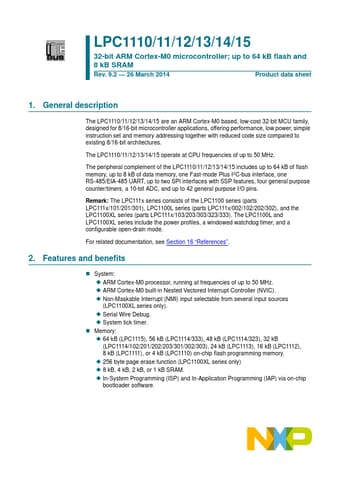

LPC1112 Datasheet Preview Page 2 LPC1112 Datasheet Preview Page 3

Datasheet Details

Part number:

LPC1112, LPC1110

Manufacturer:

NXP ↗

File Size:

1.21 MB

Description:

(lpc1110 - lpc1115) 32-bit arm cortex-m0 microcontroller.

Note:

This datasheet PDF includes multiple part numbers: LPC1112, LPC1110.
Please refer to the document for exact specifications by model.
