LPC1102 Datasheet - NXP Semiconductors

32-bit ARM Cortex-M0 microcontroller

LPC1102 Features

* System:

* ARM Cortex-M0 processor, running at frequencies of up to 50 MHz.

* ARM Cortex-M0 built-in Nested Vectored Interrupt Controller (NVIC).

* Serial Wire Debug.

* System tick timer.

* Memory:

* 32 kB on-chip flash programming memory.

* 8 kB SRAM.

* In-Appli

LPC1102 General Description

The LPC1102/1104 are an ARM Cortex-M0 based, low-cost 32-bit MCU, designed for 8/16-bit microcontroller applications, offering performance, low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures. The LPC1102/1104 operate at.

LPC1102 Datasheet (379.93 KB)

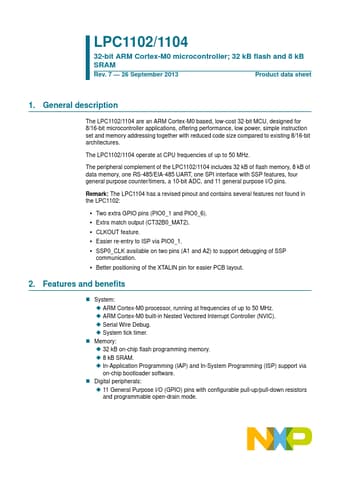

Preview of LPC1102 PDF

Datasheet Details

Part number:

LPC1102

Manufacturer:

NXP ↗ Semiconductors

File Size:

379.93 KB

Description:

32-bit arm cortex-m0 microcontroller.
LPC1102/1104 32-bit ARM Cortex-M0 microcontroller; 32 kB flash and 8 kB SRAM Rev. 7 26 September 2013 Product data sheet 1. General desc.
