LPC4317 Datasheet PDF - NXP 32-bit ARM Cortex-M4/M0 MCU Specs

LPC4317 - 32-bit ARM Cortex-M4/M0 MCU

This page provides the datasheet information for the LPC4317, a member of the LPC4333 32-bit ARM Cortex-M4/M0 MCU family.

Datasheet Summary

Description

The LPC435X_3X_2X_1X are ARM Cortex-M4 based microcontrollers with Floating Point Unit (FPU) for embedded applications which include an ARM Cortex-M0 coprocessor, up to 1 MB of flash and 136 kB of on-chip SRAM, 16 kB of EEPROM memory, two high-speed USB controllers, Ethernet, LCD, an external memory

Features

Cortex-M4 Processor core.
ARM Cortex-M4 processor (version r0p1), running at frequencies of up to 204 MHz.
Built-in Memory Protection Unit (MPU) supporting eight regions.
Built-in Nested Vectored Interrupt Controller (NVIC).
Hardware floating-point unit.
Non-maskable Interrupt (NMI) input.
JTAG and Serial Wire Debug (SWD), serial trace, eight breakpoints, and four watch points.
Enhanced Trace Module (ETM) and Enhanced Trace Buffer (ETB) support.

Datasheet Details

Part number	LPC4317
Manufacturer	NXP
File Size	7.18 MB
Description	32-bit ARM Cortex-M4/M0 MCU
Datasheet	LPC4317 Datasheet

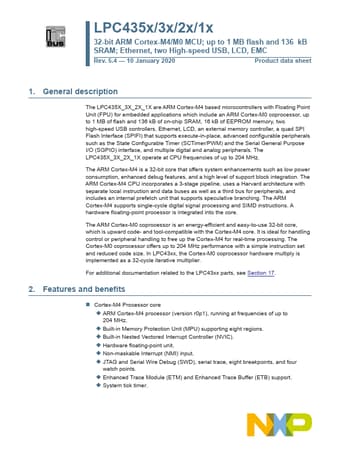

Additional preview pages of the LPC4317 datasheet.
