LPC55S04JHI48, LPC55S06JBD64 - microcontroller

NXP

📥 Download Datasheet

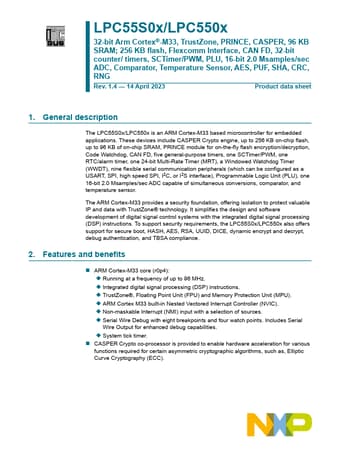

LPC55S04JHI48 Datasheet Preview — This datasheet PDF includes multiple part numbers: LPC55S04JHI48, LPC55S06JBD64. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LPC55S04JHI48, LPC55S06JBD64
Manufacturer	NXP ↗
File Size	2.51 MB
Description	microcontroller
Datasheet	LPC55S06JBD64-NXP.pdf
Note	This datasheet PDF includes multiple part numbers: LPC55S04JHI48, LPC55S06JBD64. Please refer to the document for exact specifications by model.

LPC55S04JHI48 Product details

Description

The LPC55S0x/LPC550x is an ARM Cortex-M33 based microcontroller for embedded applications.

Features

ARM Cortex-M33 core (r0p4):.
Running at a frequency of up to 96 MHz.
Integrated digital signal processing (DSP) instructions.
TrustZone®, Floating Point Unit (FPU) and Memory Protection Unit (MPU).
ARM Cortex M33 built-in Nested Vectored Interrupt Controller (NVIC).
Non-maskable Interrupt (NMI) input with a selection of sources.
Serial Wire Debug with eight breakpoints and four watch points. Includes Serial Wire Output for enhanced debug capabilities.
